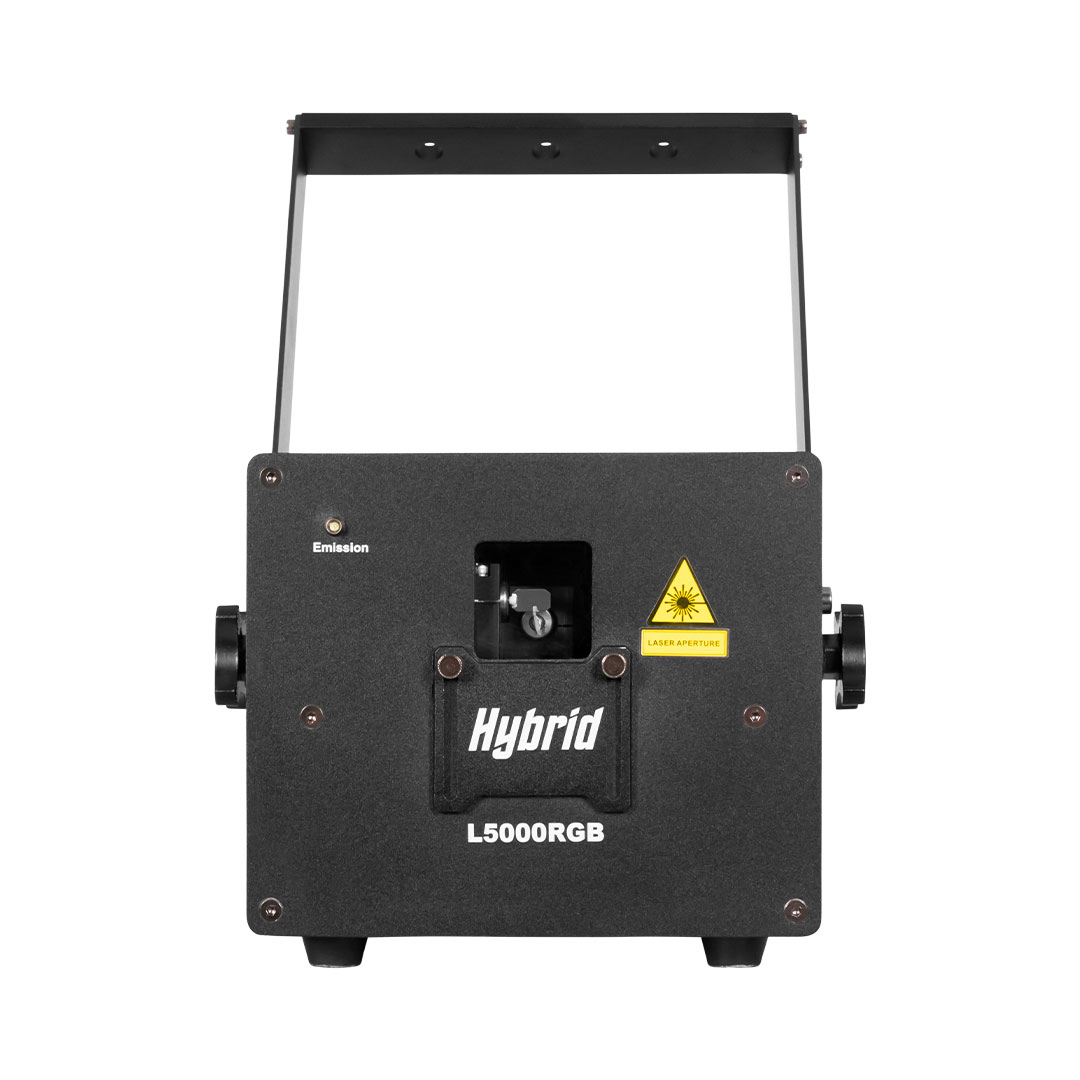

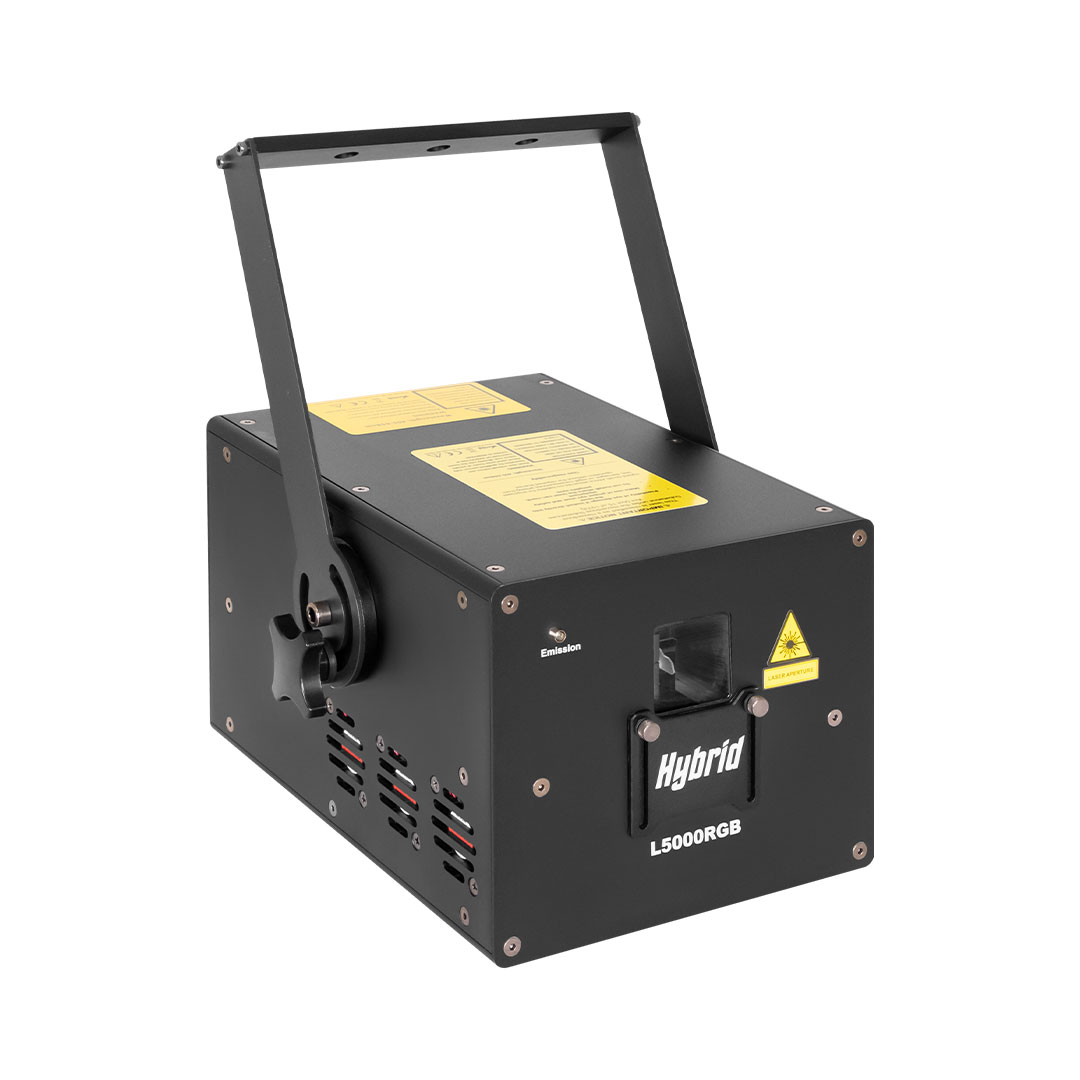

Hybrid L5000RGB MKII

180 W RGB Laser

The Hybrid L5000RGB MKII is a full pure diode laser system designed for powerful performance and long-term reliability. Built with Diode Solid-State (DSS) technology, it delivers direct laser output and operates efficiently in a wide temperature range from -30°C to 40°C. Its analogue laser modulation allows smooth, linear dimming of laser brightness, resulting in more vivid and colourful light effects. The system supports beam shows and animated graphic patterns, making it ideal for immersive visual displays. An 8GB TF card is included for storing built-in programs and downloading new ones. For safety, the unit automatically shuts off the laser in PC control mode when no trigger signal is detected, and scanner failure protection ensures the laser output is blocked to prevent single-beam hazards. The Hybrid L5000RGB MKII is built for demanding environments and is perfect for large-scale outdoor shows and lighting projects

Specifications

Voltage: AC90~250 V/AC, 50 Hz/60 Hz
Rated Power: 180 W
Waterproof Level: IP54
Work Environment: Outdoor and indoor, -30°C ~ 40°C
Scanner: 40 KPPS High-speed optical scanner, ±25° big angle scanning
Laser: RGB analogue modulate, 30 kHz frequency
Red Laser: 1000 mW, wavelength 638 nm
Green Laser: 2000 mW, wavelength 525 nm
Blue Laser: 2000 mW, wavelength 450 nm
Beam Diameter: <6 mm
Beam Divergence: <1.5 mrad
Working Modes: ILDA mode (PC Control), DMX512 (18 CH/25CH), PRG (TF card program), ILD (TF card program), SOUD (Sound Active) Mode, AUTO Mode, Outdoor Mode, Master/Slave
Play Program Format: .ild laser show document
Safety Configure: Security protection, Laser key switch, laser remote interlock, SFS Control (scanner fail safety control ON/OFF), flying rings bolt

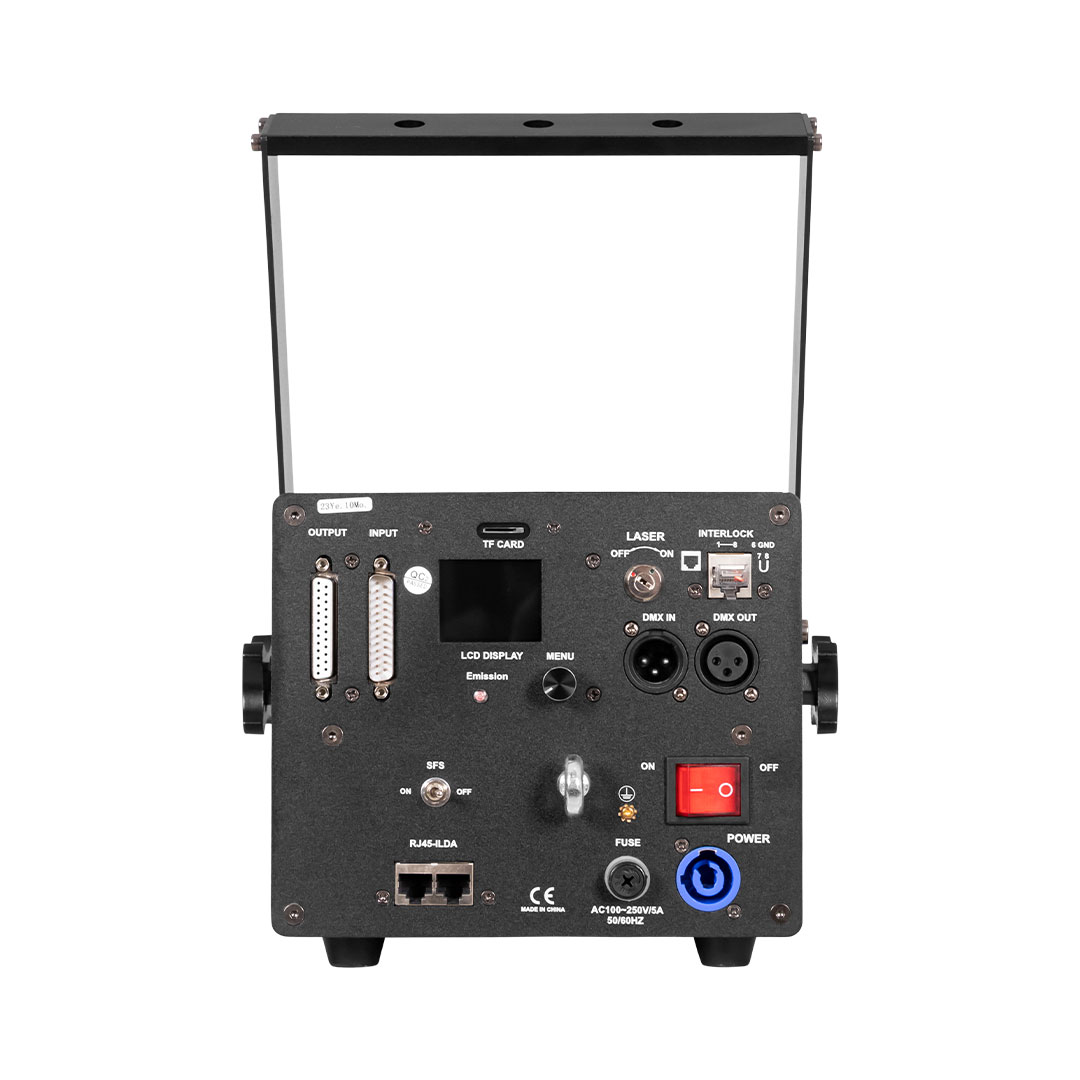

Interface: 3-pin XLR jack for DMX, DB25 and RJ45 interface for PC control
Dimensions (L x W x H): 195 x 280 x 165 mm
Weight: 7 kg
