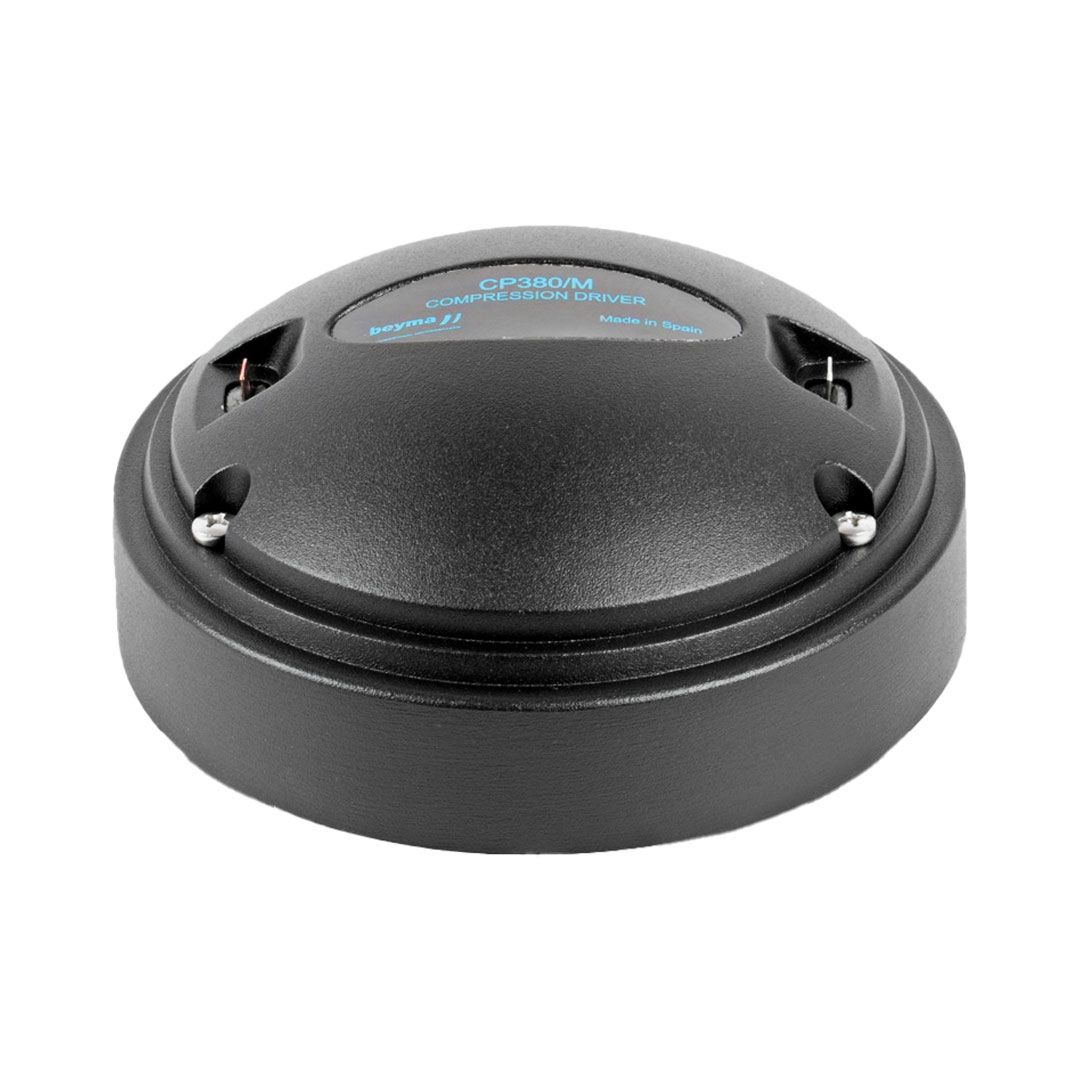

Beyma CP380/M

Diaphragm – Compression Driver
Nominal Impedance – 8 Ohm
Minimum Impedance – 8 Ohm @ 9 Khz
Sensitivity – 105 Db 1 W @ 1 M Coupled To Horn
Re – 6.1 Ohm
Frequency Range – 3500-20000 Hz
Power Capacity – 25 W Aes
Program Power – 50 W
Recom. Crossover Frequency -5 Khz Or Higher (12 Db/Oct. Min Slope)
Dispersion Hxv – 140X40º
Voice Coil Diameter – 37.6 Mm 1.5 In
Flux Density – 1.55 T
Bl Factor – 5.2 N/A
Diaphragm Material – Aluminium
