OVERVIEW

The ASTRA 210A dual 10-inch two-way active line array is specially designed for small to medium-scale sound reinforcement and fixed install applications.

With the innovative ETETM waveguide, the ASTRA 210A achieves even high-frequency diffusion, delivering a clear and powerful sound. The horizontal 90 degree horn provides precise coverage to ensure the system output is uniform, full, and smooth, allowing the audience an exceptional auditory experience.

The cabinet is made from high-quality CNC processed plywood with polyurea coating, making it waterproof, wear-resistant and heat-resistant. The compact symmetrical cabinet structure not only ensures the stability and practicality of the cabinet, but also effectively reduces its volume and weight, enabling easier installation and transportation. The ASTRA 210A stands out as an ideal choice for small to medium-scale sound reinforcement applications with its excellent sound quality, stability and flexibility.

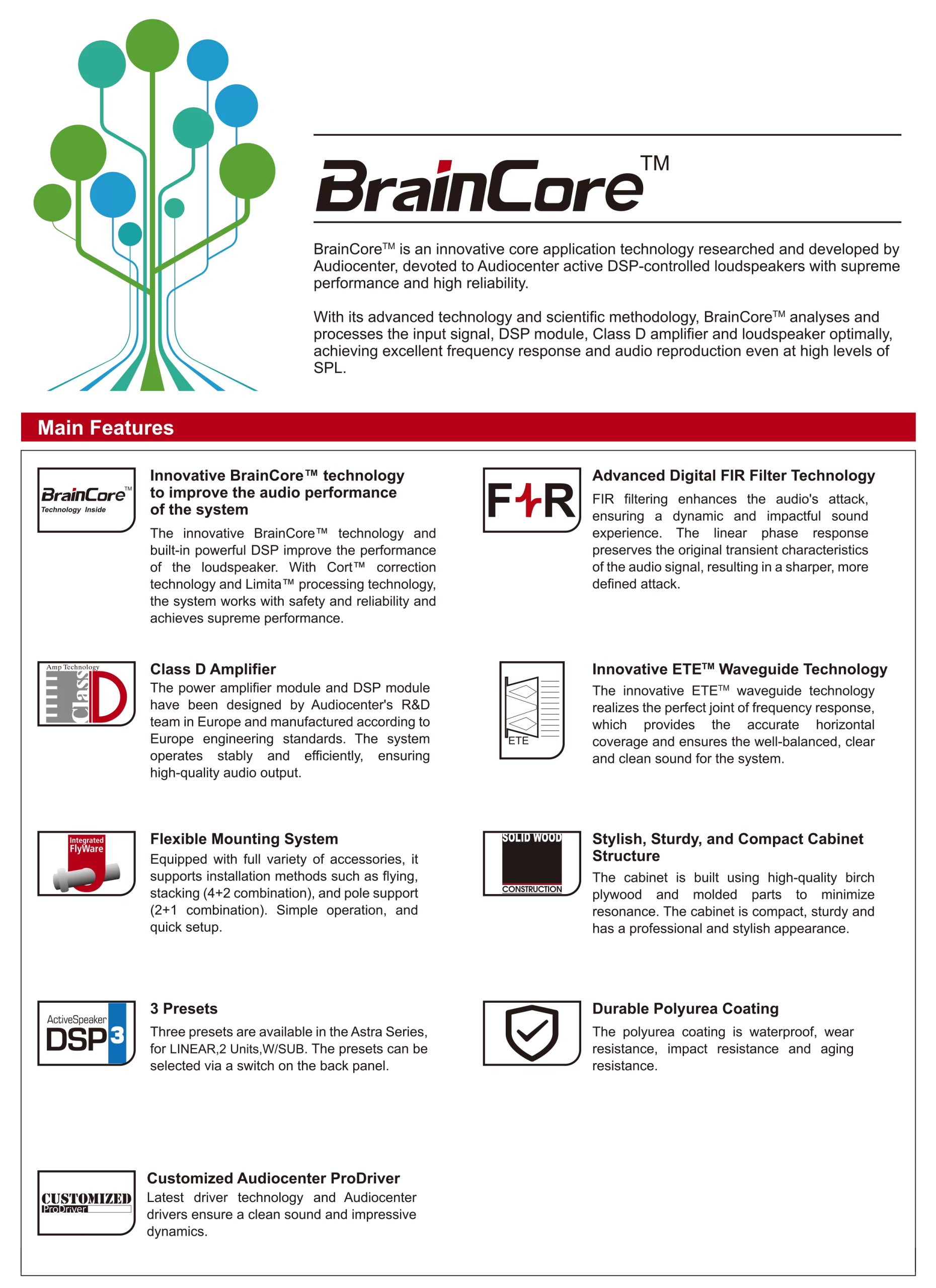

FEATURES

Perfect integration of BrainCore™ technology achieves supreme performance of the loudspeaker system.
3 presets
High end DSP, with 96kHz signal sampling frequency, with FIR filter
Class D amplifier
Customized Audiocenter driver
Optimized, compact cabinet design
Durable polyurea coating is waterproof, wear and high temperature resistant.
CNC machined plywood cabinet

SPECFICATIONS

Type: Dual 10” two-way active DSP controlled line array loudspeaker
Frequency Response (-10dB): 40Hz-20kHz
Horizontal Coverage: 90°
Vertical Coverage: Splay angle dependent
Maximum Calculated SPL/1M (Continuous/Peak): 126dB/132dB
HF: Customized driver, 2×1.75” voice coil,1.0” exit
LF: Customized 2×10” driver, 2.5” voice coil
DSP
Processor: 96kHz signal sampling frequency, FIR filtering
Presets : LINEAR,2 Units, W/SUB
AMPLIFIER
Amplifier Circuitry: Class D
Power (RMS standards): 1600W
Peak Power: 3200W
Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±0.5dB)
Intermodulation Distortion (20Hz-20kHz, half power): ＜0.05%
Total Harmonic Distortion (20Hz-20kHz，Rated power 8Ω): ＜0.05%
Cooling System: Cooling with fans
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input Connectors: Female XLR
Signal Output Connectors: Male XLR
Power Input Connectors: Power connector
Power Output Connectors: Power connector
AC Power Operating Range: 100V-130V~ or 220V-240V~(±10%,50/60Hz)
Power consumption (1/8 output power): 117W
CABINET
Cabinet Material: CNC made of excellent wood
Angle Adjustment: 0°,2°,4°,6°,8°,10°
Coating: Durable Polyurea Coating
Cabinet Colour: Black
Grille: Iron mesh
Handles: 2 side,2 rear
Optional Accessories: Frame for flying and ground stacking / Flightcase with 100mm wheels / Rain bag / Dolly
Speaker Dimension (W×H×D): 760×295×412mm
Carton Dimensions (W×H×D): 899×374×595mm
Net Weight: 30.0kg
Shipping Weight: 34.0kg
